IMA-X600-48

• Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT

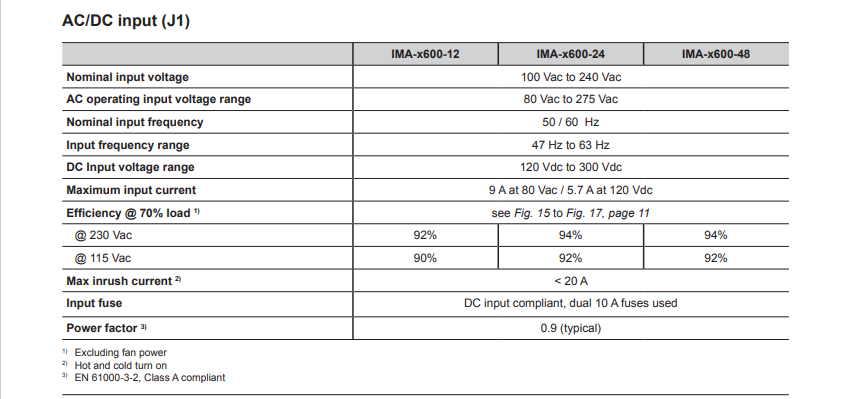

• Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
• Wide adjustable output voltage range (+/- 14%)
• 5 Vdc standby output
• High efficiency: up to 95%
• Size: 309.6 x 127 x 40.6 mm (12.2 x 5 x 1.6 in) (1U design)
• Variable speed fan control
• Low acoustic noise level of less than 39 dB(A)
• Active current sharing
• 2 × MOPP and BF appliances
• PMBus™ compatible for control, programming and monitoring
• 500,000 hour MTBF
• Optional conformal coating
• 3 years warranty
