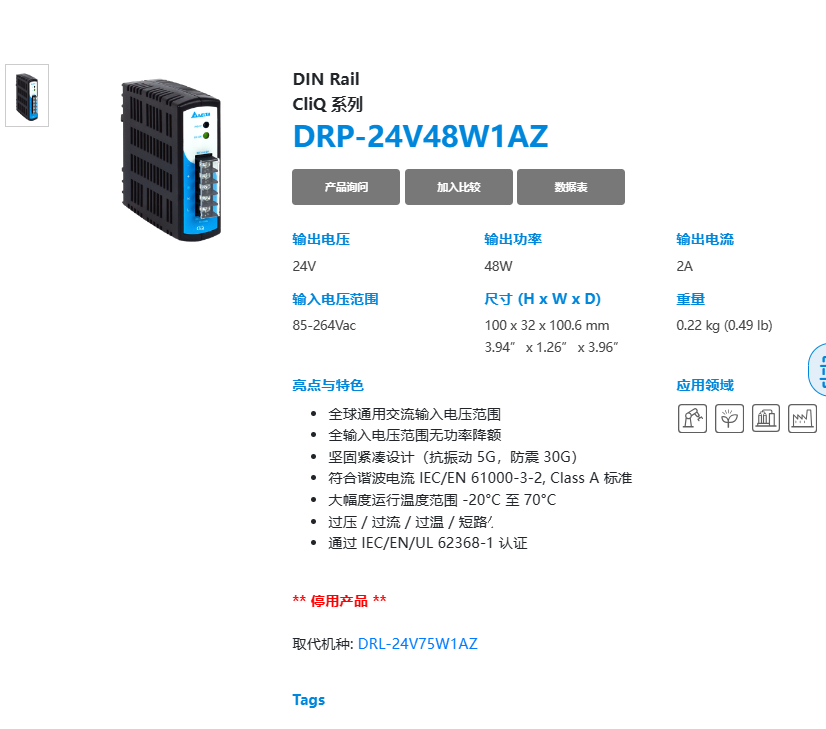

DRP-24V48W1AZ
| 输出 | DRP024V060W1Bp | DRP024V120W1Bp | DRP024V240W1Bp | DRP024V480W1Bp | |
| 输出电压 | 24 V | 24 V | 24 V | 24 V | |
| 输出电压范围 | 24-28 V | 24-28 V | 24-28 V | 24-28 V | |
| 输出电流 | 0-2.5 A | 0-5.0 A | 0-10.0 A | 0-20.0 A | |
| 输出功率 | 60 W | 120 W | 240 W | 480 W | |
| 纹波电压 (20 MHz) | < 150 mVpp | ||||
| 保持时间 | 115 VAC | > 20 ms | > 20 ms | ||
| 230 VAC | > 125 ms | > 115 ms | |||
| 输入 | |||||
| 输入相数 | 单相 | ||||
| 输入电压范围 | 85-264 VAC (直流输入范围 120-375 VDC) 1) | ||||
| 输入频率 | 47-63 Hz | ||||
| 输入电流 | 115 VAC | < 1.4 A | < 2.2 A | < 2.5 A | < 5.0 A |
| 230 VAC | < 0.8 A | < 1.1 A | < 1.3 A | < 3.0 A | |
| 满载效率 (100% 负载) | 115 VAC | > 90.0% | > 89.0% | > 90.0% | > 91.0% |
| 230 VAC | > 90.0% | > 92.0% | |||
| 最大浪涌电流(冷启动) | 115 VAC | < 20 A | < 35 A | ||
| 230 VAC | < 35 A | ||||
| 功率因素 | 115 VAC | 符合 EN 61000-3-2 | > 0.96 | > 0.96 | |
| 230 VAC | > 0.90 | > 0.95 | |||
| 漏电流 | 240 VAC | < 1 mA | < 3 mA | ||
| 机构 | |||||
| 外壳 / 底架 | 铝质 | ||||
| 尺寸(H × W × D) | mm | 121 × 32 × 125 | 121 × 50 × 123.1 | 121 × 85 × 124.1 | 121 × 144 × 118.6 |
| inch | 4.76 × 1.26 × 4.92 | 4.76 × 1.97 × 4.85 | 4.76 × 3.35 × 4.89 | 4.76 × 5.67 × 4.67 | |
| 重量 | kg | 0.37 | 0.72 | 1.1 | 1.37 |
| lb | 0.82 | 1.59 | 2.43 | 3.02 | |
| 冷却方式 | 自然对流 | ||||
| 平均故障间隔时间 | > 800,000 hrs | > 500,000 hrs | |||
| 环境 | |||||
| 运行温度 | -25°C 至 +80°C | -25°C 至 +75°C | |||
| 储存温度 | -40°C 至 +85°C | ||||
| 运行湿度 | 5 至 95% RH (无冷凝) | ||||
| 运行海拔高度 | 0 至 2,500 m (0 至 8,200 ft) | ||||
